How flash steam is generated?
Flash steam is produced when condensate at a high pressure is released to a lower pressure , it can be used for low pressure heating.
The formation of flash steam is based on the principle of conservation of energy.
When condensate at high pressure is released to a lower pressure, Sensible heat of condensate remains high ,Saturation temperature reduces and hence Excess heat converts water into steam (latent heat)
The higher the steam pressure and lower the flash steam pressure the greater the quantity of flash steam generated, Since the boiling point of water decreases with pressure, part of the condensate instantly vaporizes to maintain thermal equilibrium.
In industries such as power plants, sugar mills, chemical processing, and refineries, understanding and optimizing flash steam can result in significant energy savings.

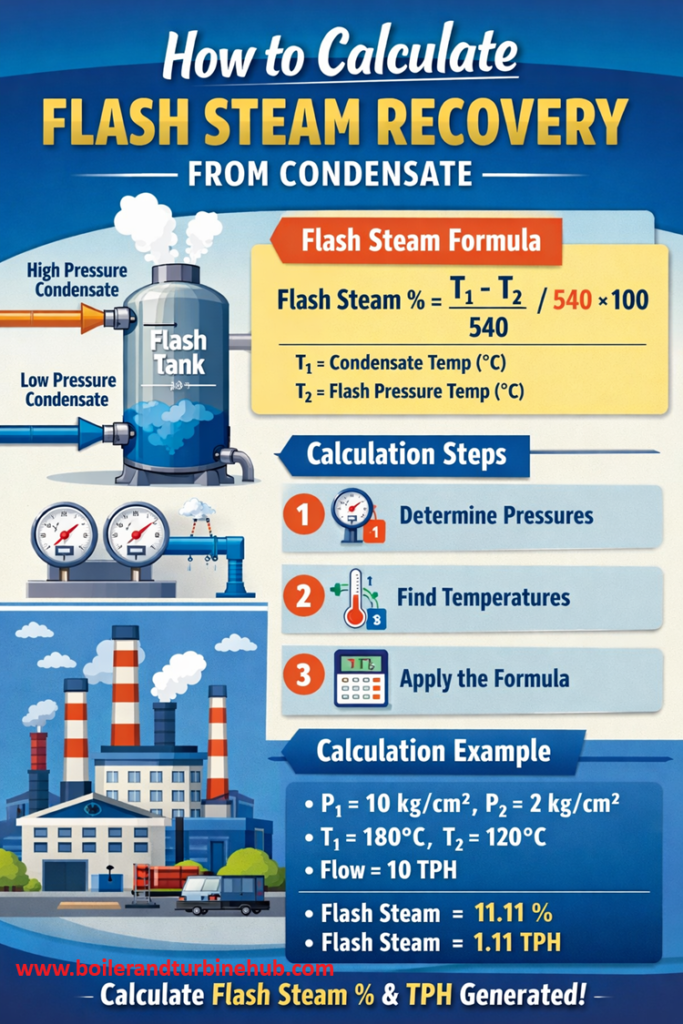

Flash steam quantity can be calculated by the following formula
Flash steam available % = S1-S2/L2
S1 = Sensible heat at of higher pressure condensate in kcal/kg
S2 = Sensible heat at low pressure steam in kcal/kg
L2 = Latent heat of flash steam
Calculation:
A Hot condensate at & 7 Kg/cm2 has heat content about 173 kcal/kg, when it is released to atmosphere pressure 1 kg/cm2 A, then calculate the percentage of flash steam generated
We have,
S1 = 173 kcal/kg
S2 = 100 kcal/kg
L2 = 539 kcal/kg
Flash steam available % = S1-S2/L2
Flash steam available % = 173-100/539
Flash steam available % =13.5%
Where do you find the formation of flash steam?
- Steam trap discharge lines
- Condensate recovery systems
- Flash vessels or flash tanks
- Heat exchangers operating at different pressure levels
- Boiler blowdown systems
What is the significance of recovering flash steam?
Fuel consumption Reduction:
By utilizing flash steam, the demand on boilers is reduced, lowering fuel consumption
Energy Savings:
Flash steam contains valuable latent heat that can be reused in low-pressure applications.
Reduced Water Consumption:
Less makeup water is required when condensate is reused.
Improved System Efficiency:
Efficient use of condensate heat improves overall plant thermal efficiency.
